Product Description

Product Parameters

Server Model Dell EMC PowerEdge R760XD2
Features Technical Specifications
Processor Up to two 4th Generation Intel Xeon Scalable processor with up to 56 cores per processor and with optional Intel® QuickAssist Technology
RAM Up to 16 DDR5 RDIMMs (up to 1TB supported) NVDIMM No DIMM Speed: up to 4800 MT/S
Storage controllers • Internal Controllers: PERC H965i, PERC H755, PERC H755N, PERC H355, HBA355i
• Internal Boot: Boot Optimized Storage Subsystem (BOSS-N1): HWRAID 2 x M.2 NVMe SSDs or USB
• External HBA (non-RAID): HBA355e
• Software RAID: S160
Drive Bays Front bays:
• Up to 12 x 3.5-inch SAS/SATA (HDD/SSD) max 240 TB
• Up to 8 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 122.88 TB
• Up to 16 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 245.76 TB
• Up to 24 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 368.64 TB
Rear bays:
• Up to 2 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 30.72 TB
• Up to 4 x 2.5-inch SAS/SATA/NVMe (HDD/SSD) max 61.44 TB
Power supplies • 2800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
• 2400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
• 1800 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
• 1400 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
• 1100 W Titanium 100—240 VAC or 240 HVDC, hot swap redundant
• 1100 W LVDC -48 — -60 VDC, hot swap redundant
• 800 W Platinum 100—240 VAC or 240 HVDC, hot swap redundant
• 700 W Titanium 200—240 VAC or 240 HVDC, hot swap redundant
Size • Height – 86.8 mm (3.41 inches)
• Width – 482 mm (18.97 inches)
• Depth – 772.13 mm (30.39 inches) with bezel, 758.29 mm (29.85 inches) without bezel
Fans • Standard (STD) fans / High performance Silver (HPR) fans / High performance Gold (VHP) fans
• Up to 6 hot plug fans
Outline specification 2U rack server
Embedded management iDRAC9
• iDRAC Direct
• iDRAC RESTful API with Redfish
• iDRAC Service Module
• Quick Sync 2 wireless module
Embedded NIC 2 x 1 GbE LOM
GPU options Up to 2 x 350 W DW and 6 x 75 W SW
Port Front Ports:
• 1 x iDRAC Direct (Micro-AB USB) port
• 1 x USB 2.0
• 1 x VGA

Rear Ports:
• 1 x Dedicated iDRAC Ethernet port
• 1 x USB 2.0
• 1 x USB 3.0
• 1 x VGA
• 1 x Serial (optional)
• 1 x VGA (optional for Direct Liquid Cooling configuration)
PCIe Up to eight PCIe slots:
• Slot 1: 1 x8 Gen5 or 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length
• Slot 2: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length or 1 x16 Gen5 Full height, Full length
• Slot 3: 1 x16 Gen4 Low profile, Half length
• Slot 4: 1 x8 Gen4 Full height, Half length
• Slot 5: 1 x8/1 x16 Gen4 Full height, Half length or 1 x16 Gen4 Full height, Full length
• Slot 6: 1 x16 Gen4 Low profile, Half length
• Slot 7: 1 x8/1 x16 Gen5 or 1 x8 Gen4 Full height, Half length
• Slot 7 SNAPI: 1 x16 Gen5 Full height, Half length
• Slot 8: 1 x8 Gen5 or 1 x8 Gen4 Full height, Half length
Operating system and hypervisor Canonical Ubuntu Server LTS
• Microsoft Windows Server with Hyper-V
• Red Hat Enterprise Linux
• SUSE Linux Enterprise Server
• VMware ESXi
For specifications and interoperability details, see Dell OS support page.
Warranty 3 years

Products Description

Dell PowerEdge R760xd2
Dell PowerEdge R760xd2
Meet Your Growing Unstructured Data Needs With Object Storage Technology Designed to Be Easily Configurable, Serviceable, and Scalable. This 2U, 2 socket Server is Ideal for File and Object Storage, Video Capture/Retrieval, and Content Delivery Networks.

Product Display

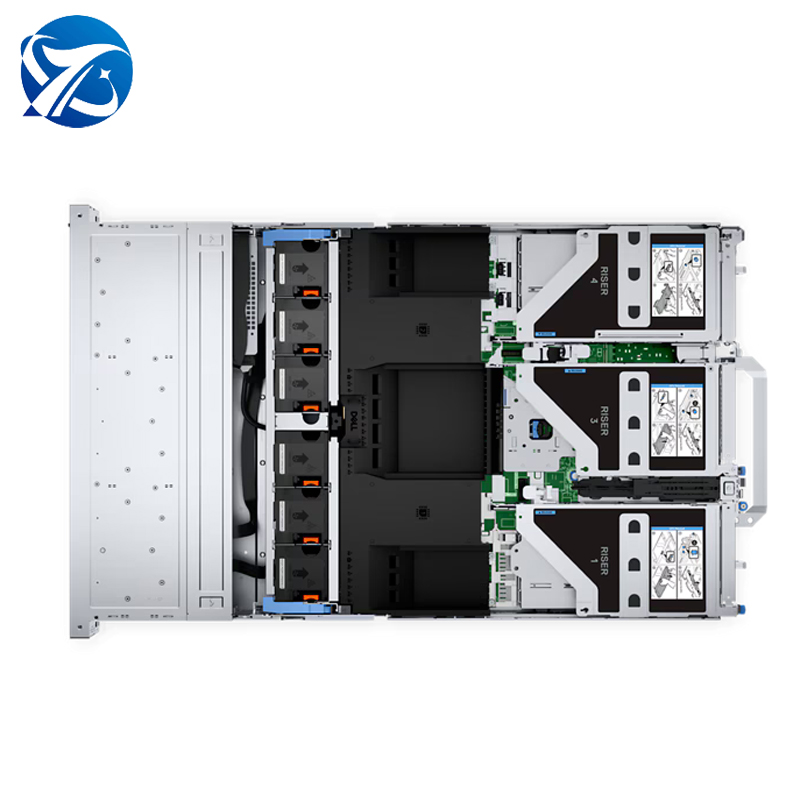

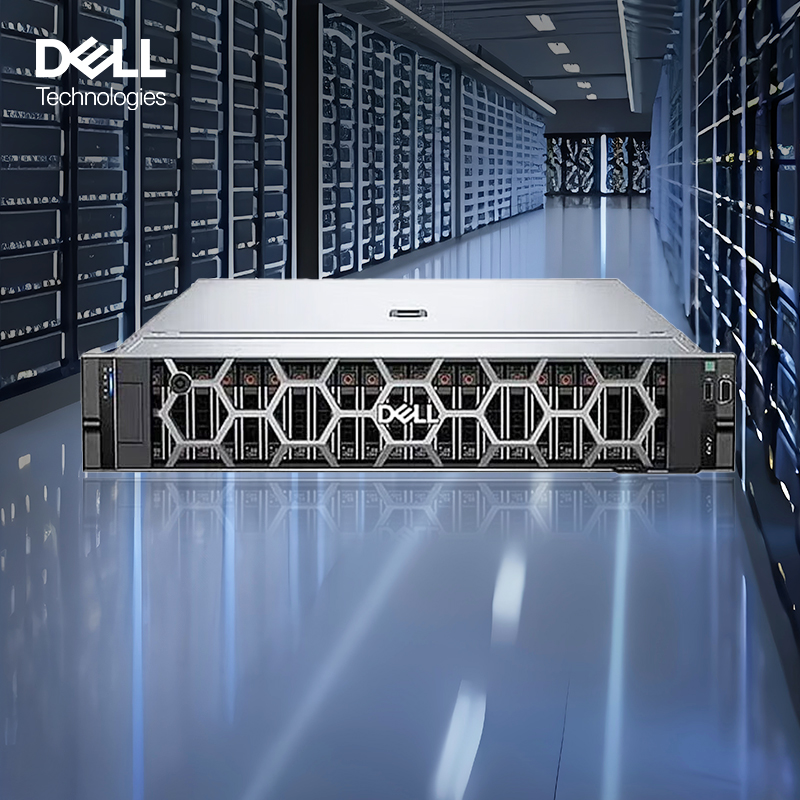

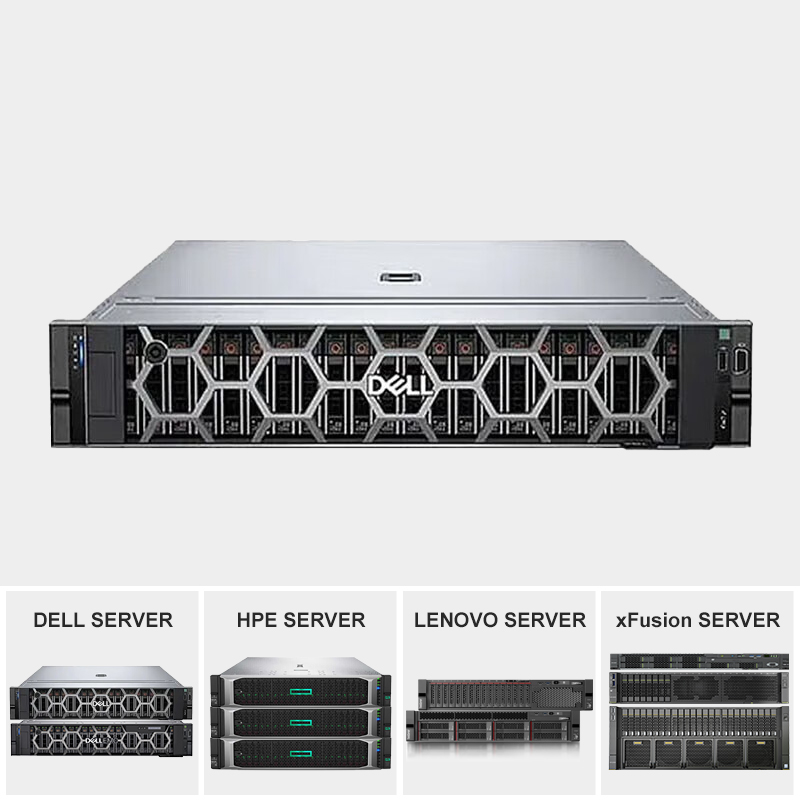

Product View 1
Product View 2
Product View 3
Product View 4
Product View 5
Product View 6
Product View 7

Application Scenario

Application Scenario

Company Profile

Corporate Environment
As a leading integrated IT solutions provider, we combine cutting edge in house manufacturing, dedicated R&D facilities, and a robust global distribution network to deliver comprehensive end to end infrastructure services. With a team of over 300 highly skilled professionals, including more than 150 certified engineers holding top tier certifications, we bring 15 years of proven expertise in designing, deploying, and maintaining mission-critical IT environments for enterprises worldwide. Our vertically integrated approach ensures seamless quality control from component sourcing to final implementation. As authorized partners for Huawei, xFusion, Dell, HPE, and Lenovo, we provide:

• Computing servers
• Network storage
• Network switches
• CPU, RAM, HARD DRIVES, and other accessories

Exhibition

Exhibition Presence

Packing & Delivery

Packing Gallery 1
Packing Gallery 2
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.

FAQ

Q1: When can I get the quotation?
We usually quote within 24 hours after receiving your inquiry. If you require urgent pricing assistance, please notify us during your contact submission so we can prioritize your inquiry.
Q2: What type of warranty do you provide for server hardware?
Our complete system products provide a 3-year replacement warranty. We maintain a complete and reliable supply chain infrastructure to promptly handle any after-sales or hardware issues.
Q3: Are the memory modules and components original?
Yes, all memories are constructed with original brand chips. We strictly test every single module and component prior to delivery to ensure maximum uptime and performance.
Q4: What payment methods are accepted?
We accept various secure payment options including credit cards, bank card transfers, and standard T/T (Telegraphic Transfer) procedures to streamline the purchasing process.
Q5: What is the Minimum Order Quantity (MOQ) for custom configurations?
Different products have different MOQs. Please share your specific deployment demands with us, and we will work to meet your targets. We welcome both small test orders and large-scale bulk procurement.
Q6: How do your prices compare to the market, and why should I choose you?
We have specialized in enterprise infrastructure for many years. We prioritize components quality over cost-cutting, as consistent system stability supports long-term business. While external server chassis may look identical, structural interior differences and genuine components make a major difference in hardware longevity and security.
