NexaGPU
NexaGPU

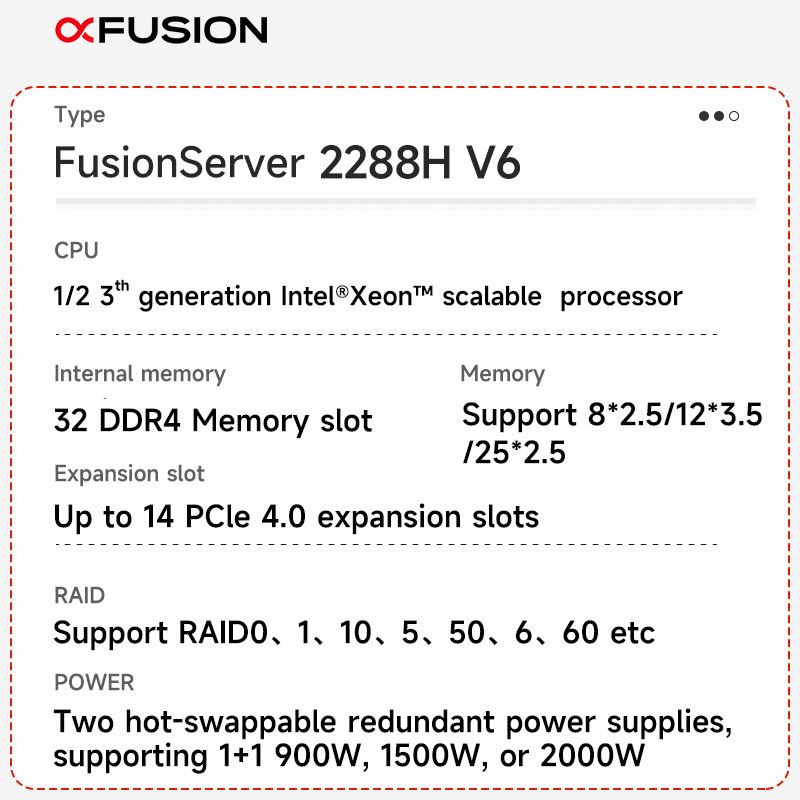

| Specification | Details |
|---|---|

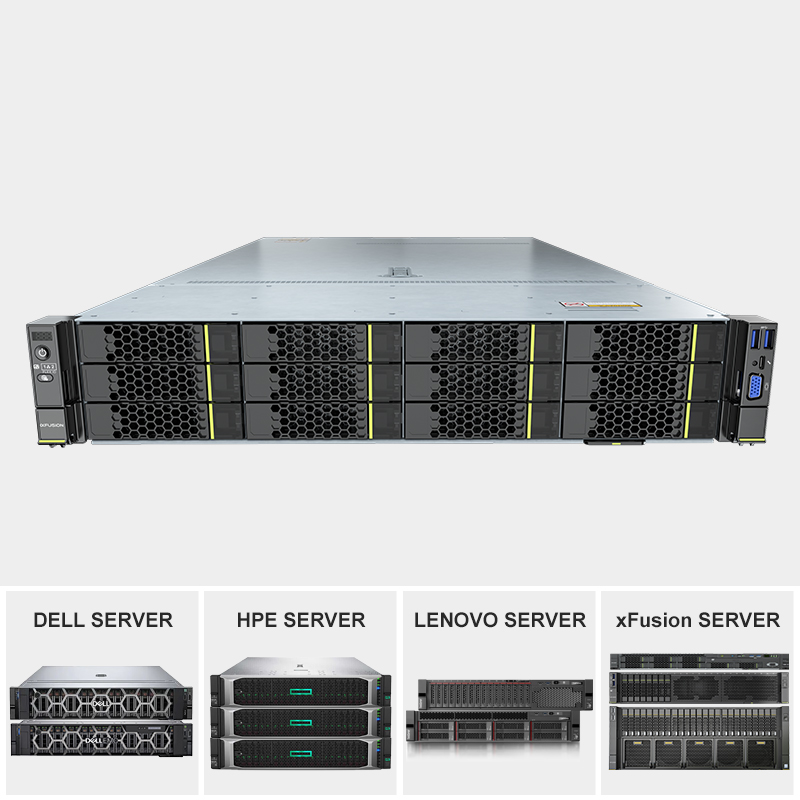

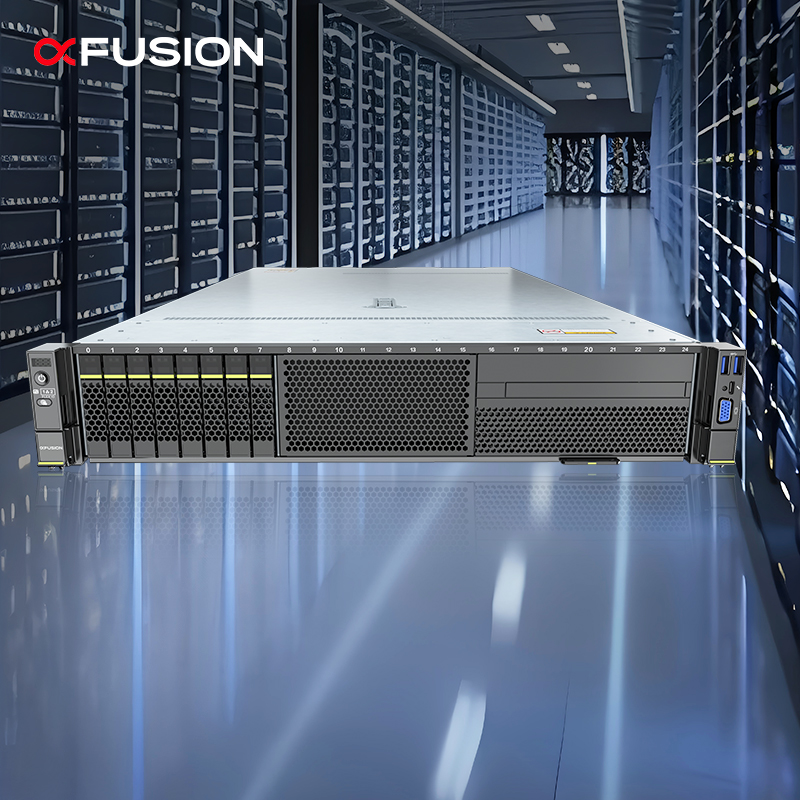

| Server Model | FusionServer 2288H V6 |
| Form Factor | 2U rack server |
| Processors | One or two 3rd Gen Intel® Xeon® Scalable Ice Lake processors (8300/6300/5300/4300 series), TDP up to 270 W |
| Local Storage |
Supports various drive configurations and hot swappable: • 8-31 x 2.5-inch SAS/SATA/SSD drives • 12-20 x 3.5-inch SAS/SATA drives • 4/8/16/24 NVMe SSDs • 45 x 2.5-inch drives or 34 full-NVMe SSDs Supports flash storage: • Dual M.2 SSDs |

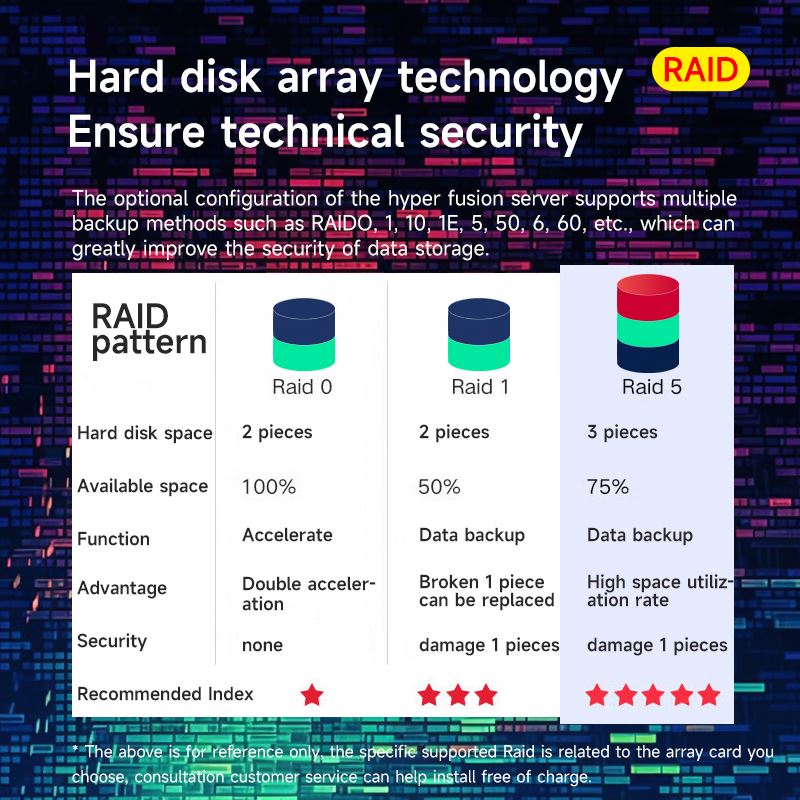

| RAID support | Supports RAID 0, 1, 10, 1E, 5, 50, 6, or 60, optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration. |
| Network |
Provides expansion capability of multiple types of networks. Provides OCP 3.0 NICs. The two FlexIO card slots support two OCP 3.0 network adapters respectively, which can be configured as required. Hot swappable function supported. |
| PCIe Expansion | Provides a maximum of fourteen PCIe 4.0 slots, including one PCIe slot dedicated for RAID card, two FlexIO card slots dedicated for OCP 3.0, and eleven PCIe 4.0 slots for standard PCIe cards. |
| Chip Set | Intel C621A |
| Management |
The iBMC chip integrates one dedicated GE management port to provide comprehensive management functions such as fault diagnosis, automated O&M, and hardware security hardening. • The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0; provides a remote management user interface based on HTML5/VNC KVM; provides out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control. • (Optional) Configured with the FusionDirector management software to provide advanced management functions throughout the lifecycle. |
| Operating Systems | Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, etc. |
| Security Features | Power-on password, administrator password, TPM 2.0, security panel, secure boot, and cover opening detection. |
| Fan Modules | Four hot-swappable counter-rotating fan modules in N+1 redundancy mode |
| Operating Temperature | 5°C to 45°C (41°F to 113°F) (ASHRAE Classes A1 to A4 compliant) |
| Certifications | CE, UL, CCC, FCC, VCCI, RoHS, etc |
| Installation Kit | L-shaped guide rails, adjustable guide rails, and holding rails. |
| Height X Width X Depth | 86.1 mm x 447 mm x 790 mm (3.39 in. x 17.60 in. x 31.10 in.) |
| Power Supply Units |
Two hot-swappable PSUs in 1+1 redundancy mode. Supported options include: • 900 W AC Platinum/Titanium PSUs (input: 100 V to 240 V AC, or 192 V to 288 V DC) • 1500 W AC Platinum PSUs (1000 W @ 100 V to 127 V AC; 1500 W @ 200 V to 240 V AC, or 192 V to 288 V DC) • 1500 W 380 V HVDC PSUs (input: 260 V to 400 V DC) • 1200 W -48 V to -60 V DC PSUs (input: -38.4 V to -72 V DC) • 3000 W AC Titanium PSUs (2500 W @ 200 V to 220 V AC; 2900 W @ 220 V to 230 V AC; 3000 W @ 230 V to 240 V AC) • 2000 W AC Platinum PSUs (1800 W @ 200 V to 220 V AC, or 192 V to 200 V DC; 2000 W @ 220 V to 240 V AC, or 200 V to 288 V DC) |
Q1: When can I get the quotation?
A1: We usually quote within 24 hours after receiving your inquiry. If you are in a hurry, please inform us by email or telephone so we can give priority to your inquiry.
Q2: What quality guarantees and warranties do you offer?
A2: The best quality and reputation are always our main concerns. Our whole machine products provide a 3-year replacement warranty, and we have a complete supply chain to deal with any after-sales problems efficiently.
Q3: How do you verify the quality of components like memory modules?
A3: All components and memory are original brand chips, and we strictly test all parts and memory before each shipment to ensure optimal performance.
Q4: What payment methods do you accept and how do you build trust?
A4: We accept Alipay, credit card, bank card transfer, T/T, etc. Additionally, we have passed SGS annual audits and Alibaba's financial inspections to eliminate payment concerns.
Q5: What is the minimum order quantity (MOQ) for an OEM order?
A5: Different products have different MOQs. Let us know your requirements and we will try our best to meet your needs. Small orders are also welcome.
Q6: Why are there price gaps between similar-looking hardware?
A6: We focus on internal component quality to support long-term business. While external appearance may look identical, performance gaps and price differences exist due to internal configurations and quality levels.
